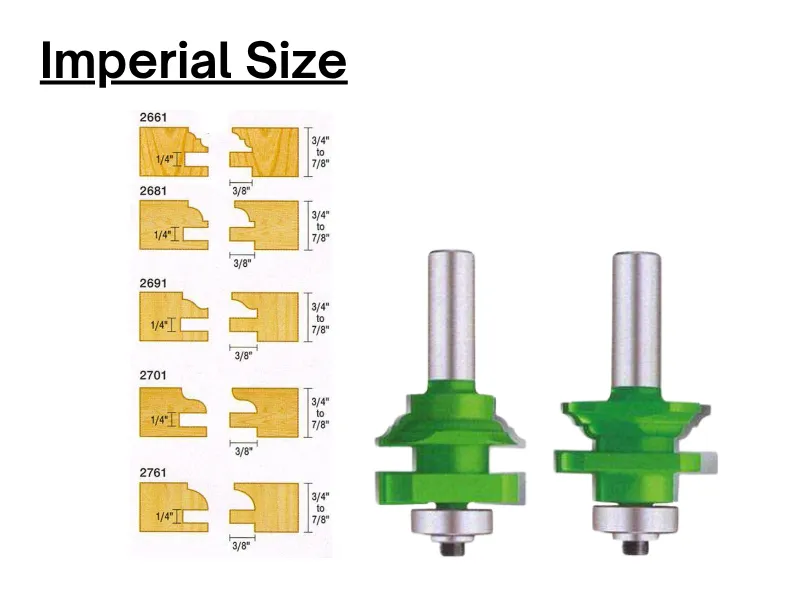

2-piece Stile & Rail Sets With Bearing

2-piece Stile & Rail Sets With Bearing

Add to inquiry
Specifications (Unit: inch)
ITEM NO DESCRIPTION SHANK DIA CUTTER DIA CUTTING LENGTH SHANK LENGTH
2661 CLASSICAL 1/2" 1-3/4" 1-1/8" 1-1/2"
2671 QUARTER ROUND 1/2" 1-3/4" 1-1/8" 1-1/2"
2681 QUARTER BEAD 1/2" 1-3/4" 1-1/8" 1-1/2"
2691 ROMAN OGEE 1/2" 1-3/4" 1-1/8" 1-1/2"
2701 OGEE 1/2" 1-3/4" 1-1/8" 1-1/2"
Specifications (Unit: mm)
ITEM NO. SHANK DIA. DESCRIPTION CUTTER DIA. CUTTING LENGTH
6301 12 CLASSICAL 44.50 28.6
6302 12 QUARTER ROUND 44.50 28.6
6303 12 QUARTER BEAD 44.50 28.6
6304 12 ROMAN OGEE 44.50 28.6
6305 12 OGEE 44.50 28.6
