Raised Panel Bits With Bearing

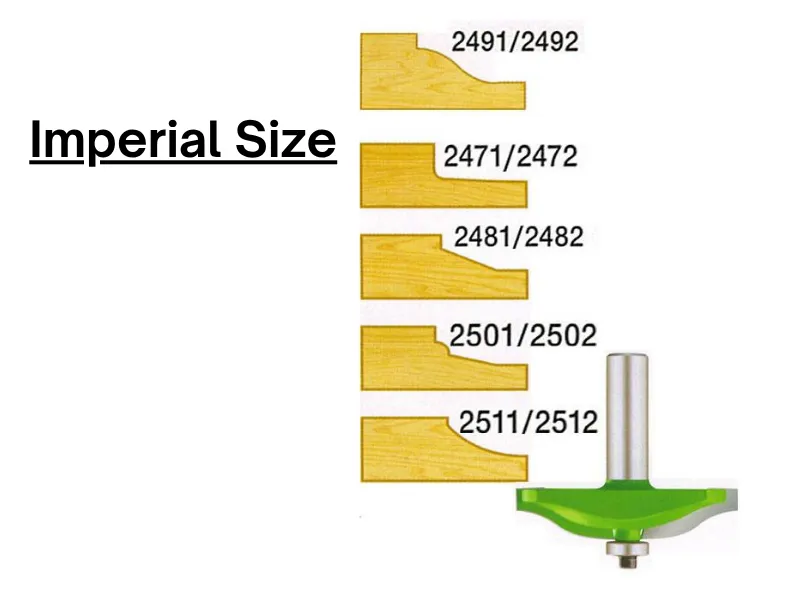

Specifications (Unit: inch)
| ITEM NO. | SHANK DIA. | CUTTER DIA. | CUTTING LENGTH | SHANK LENGTH | CUTTING WIDTH |
|---|---|---|---|---|---|
| 2471 | 1/2" | 2-5/8" | 1/2" | 1-1/2" | 1-1/16" |
| 2472 | 1/2" | 3-1/2" | 9/16" | 1-1/2" | 1-1/2" |
| 2481 | 1/2" | 2-5/8" | 7/16" | 1-1/2" | 1-1/16" |
| 2482 | 1/2" | 3-1/2" | 9/16" | 1-1/2" | 1-1/2" |
| 2491 | 1/2" | 2-5/8" | 1/2" | 1-1/2" | 1-1/16" |
| 2492 | 1/2" | 3-1/2" | 9/16" | 1-1/2" | 1-1/2" |
| 2501 | 1/2" | 2-5/8" | 7/16" | 1-1/2" | 1-1/16" |
| 2502 | 1/2" | 3-1/2" | 9/16" | 1-1/2" | 1-1/2" |
| 2511 | 1/2" | 2-5/8" | 9/16" | 1-1/2" | 1-1/16" |
| 2512 | 1/2" | 3-1/2" | 9/16" | 1-1/2" | 1-1/2" |
Specifications (Unit: mm)
•5° FACE CUT
| ITEM NO. | SHANK DIA. | CUTTER DIA. | CUTTING LENGTH | CUTTING WIDTH |
|---|---|---|---|---|
| 6351 | 12 | 66.7 | 12.7 | 27 |
| 6352 | 12 | 88.9 | 14.3 | 38.1 |
•15° FACE CUT
| ITEM NO. | SHANK DIA. | CUTTER DIA. | CUTTING LENGTH | CUTTING WIDTH |
|---|---|---|---|---|
| 6361 | 12 | 66.7 | 11.1 | 27 |
| 6362 | 12 | 88.9 | 14.3 | 38.1 |
•OGEE
| ITEM NO. | SHANK DIA. | CUTTER DIA. | CUTTING LENGTH | CUTTING WIDTH |
|---|---|---|---|---|
| 6371 | 12 | 66.7 | 12.7 | 27 |
| 6372 | 12 | 88.9 | 14.3 | 38.1 |
•12° FACE AND QUARTER ROUND
| ITEM NO. | SHANK DIA. | CUTTER DIA. | CUTTING LENGTH | CUTTING WIDTH |
|---|---|---|---|---|
| 6381 | 12 | 66.7 | 11.1 | 27 |
| 6382 | 12 | 88.9 | 14.3 | 38.1 |
•CONVEX
| ITEM NO. | SHANK DIA. | CUTTER DIA. | CUTTING LENGTH | CUTTING WIDTH |
|---|---|---|---|---|
| 6391 | 12 | 66.7 | 12.7 | 27 |
| 6392 | 12 | 88.9 | 14.3 | 38.1 |
